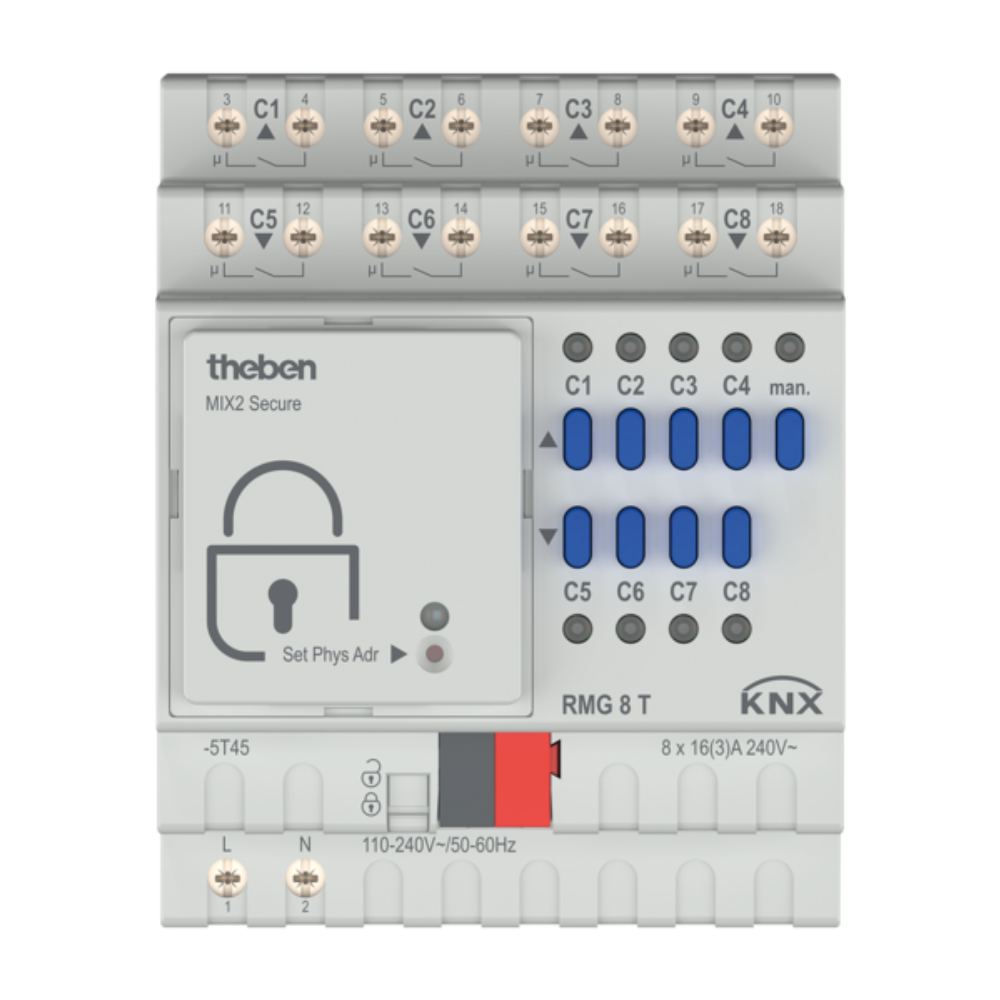

RMG 8 T KNX

شرح

Function description
→ 8-way switching or 4-way blind actuator MIX2
→ Base module MIX2
→ Can be upgraded to maximum of 24 channels
→ Flexible channel function selection as switching actuator or for controlling drives for blinds, shutters, sun and vision protection → devices, skylights and ventilation flaps
→ Up to two extension modules MIX or MIX2 can be connected to one base module
→ Device and KNX bus module can be swapped independently of each other
→ Removable KNX bus module enables devices to be changed without reprogramming
→ Manual set-up and use of actuator is possible without KNX bus module
→ LED switching status display for each channel
→ Manual operation on device (even without bus connection)
