LUXA 103 S360-28 KNX UP WH

شرح

Function description

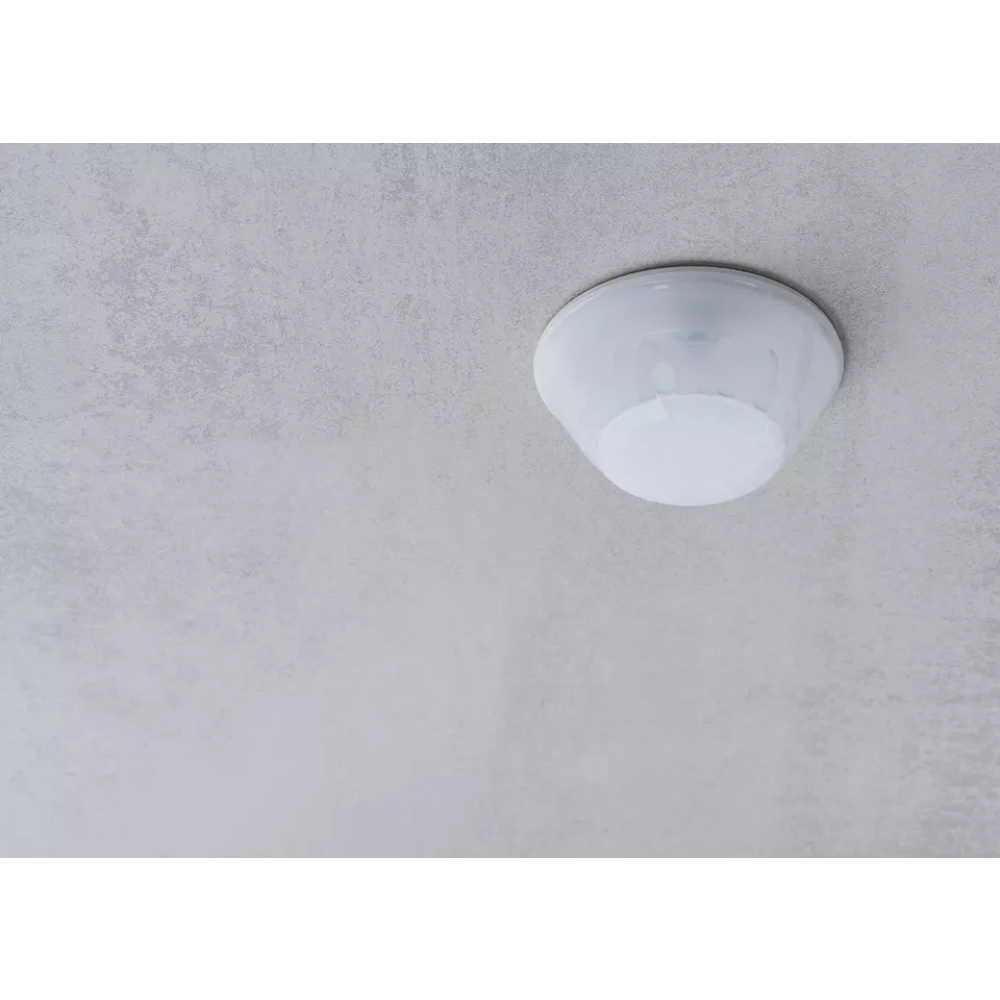

• Presence detector (PIR) for flush-mounted ceiling installation indoor
• Rectangular detection area 360°, 28 x 5 m (140 m2) at 3 m mounting height
• For KNX bus system, 2 light channels and 2 presence channels for HVAC control
• 2 channels light with 1 light measurement
• Automatic lighting control with constant light control or switching mode
• Dimmable lighting in switching mode with and without daylight influence
• Integrated temperature sensor
• Day / night switching via telegram
• Stand-by functionality (orientation light)
• 3 logic channels (AND/OR/XOR)
