LUXA 103 S360-101-12 DE-UP WH

شرح

Function description

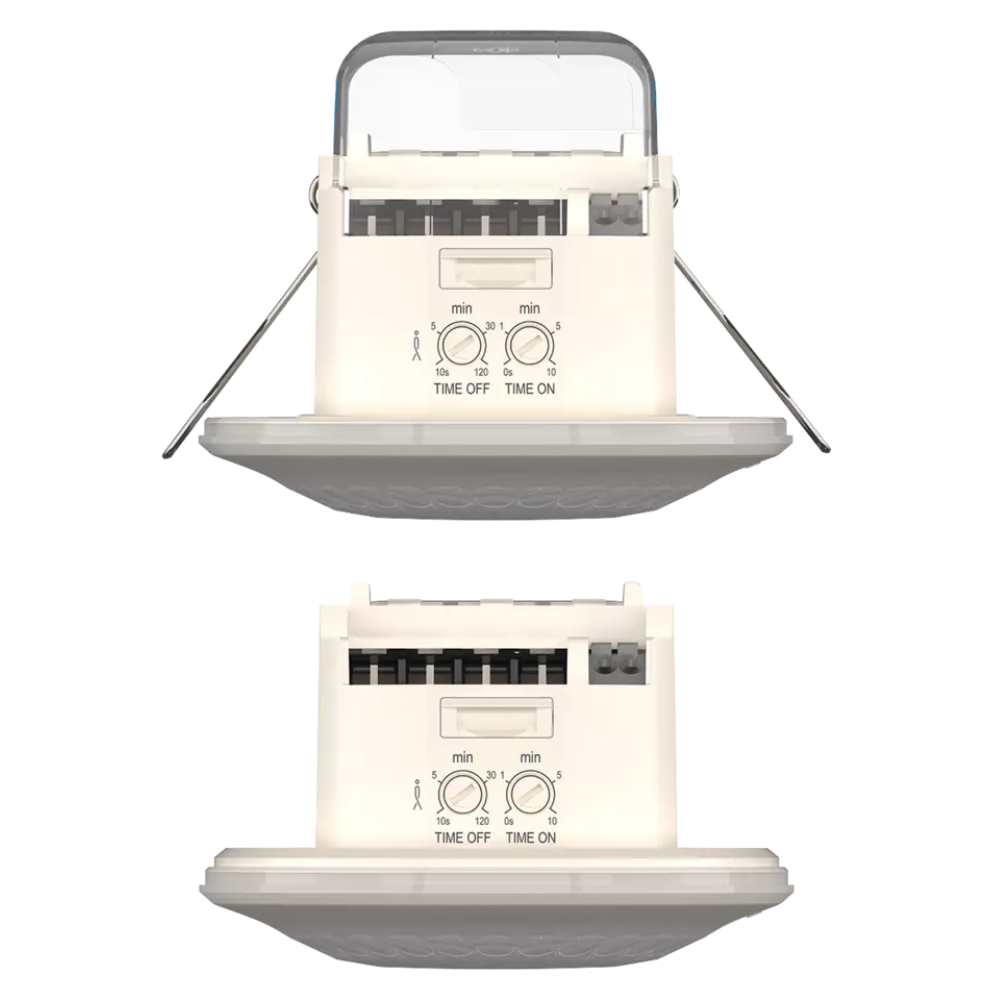

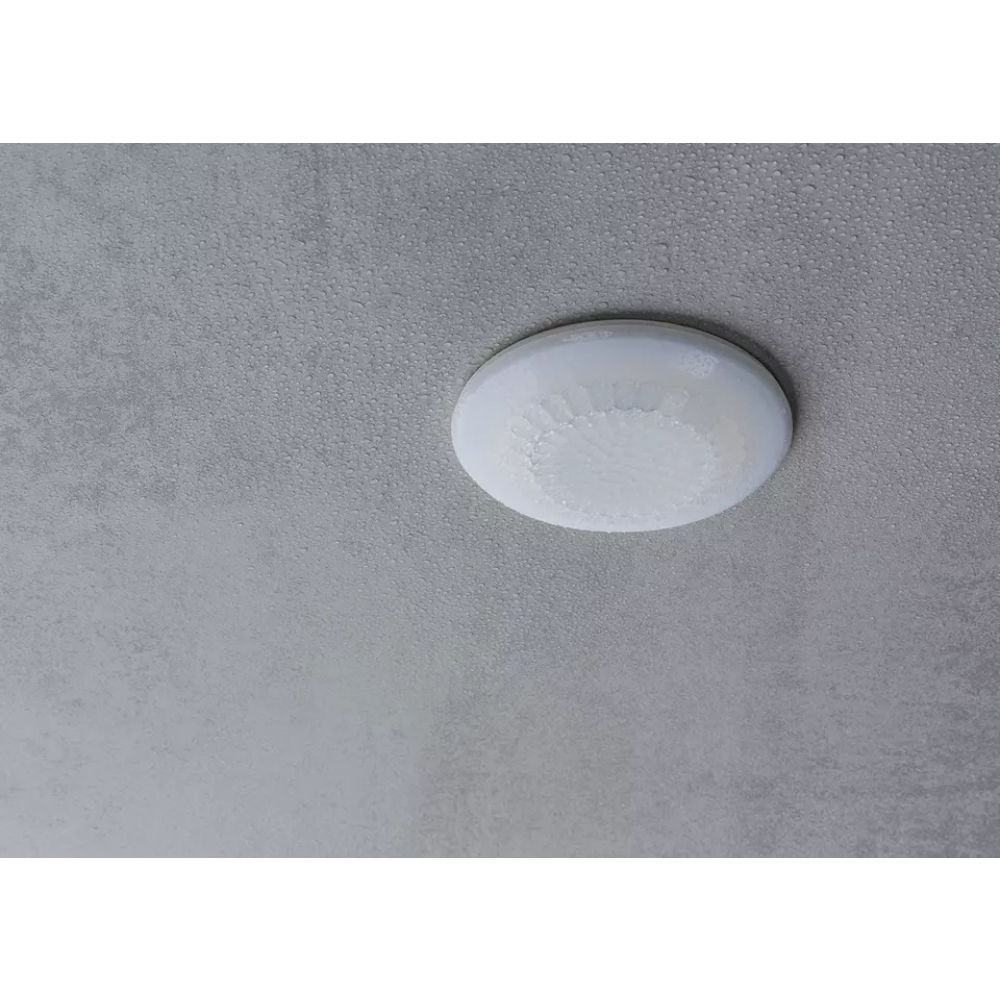

• Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame

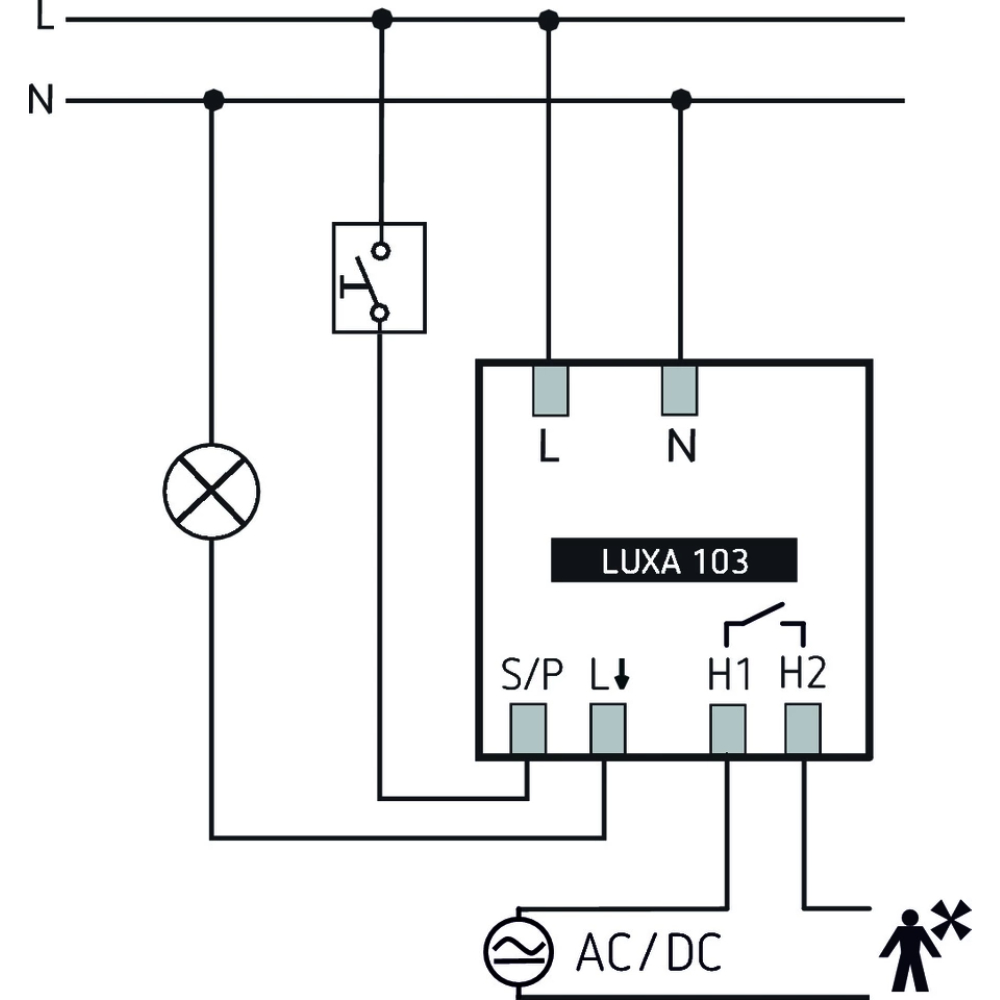

• 1 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control)
• Circular detection area 360°, Ø 12 m (113 m²) at 3 m mounting height

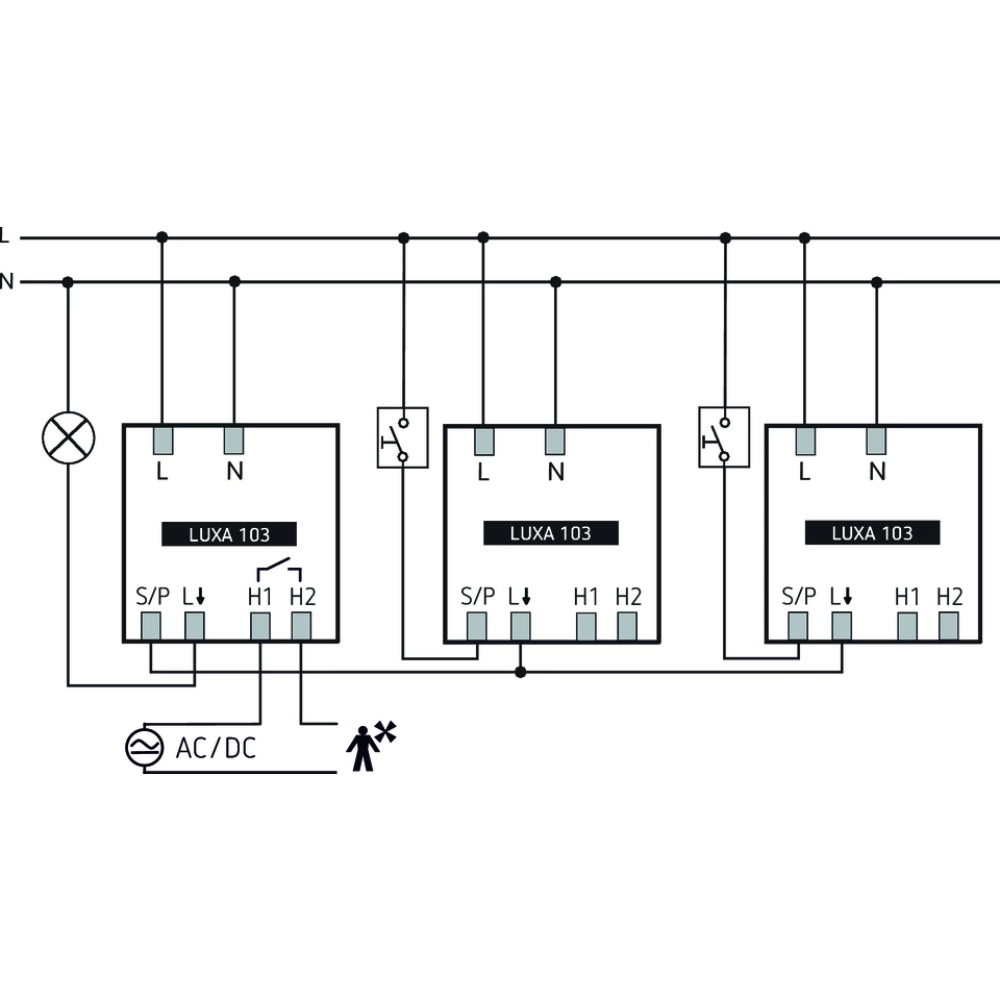

• Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
• Networking with wall detector theMura Slave possible
• Connection option for push-button for manual switching
• Operation as fully or semi-automatic possible
• One directional brightness measurement (mixed light measurement)
• Teach-in function, pulse function, test function, staircase lighting function
• Ready for operation immediately due to factory presetting
