DM 4 T KNX

شرح

Function description

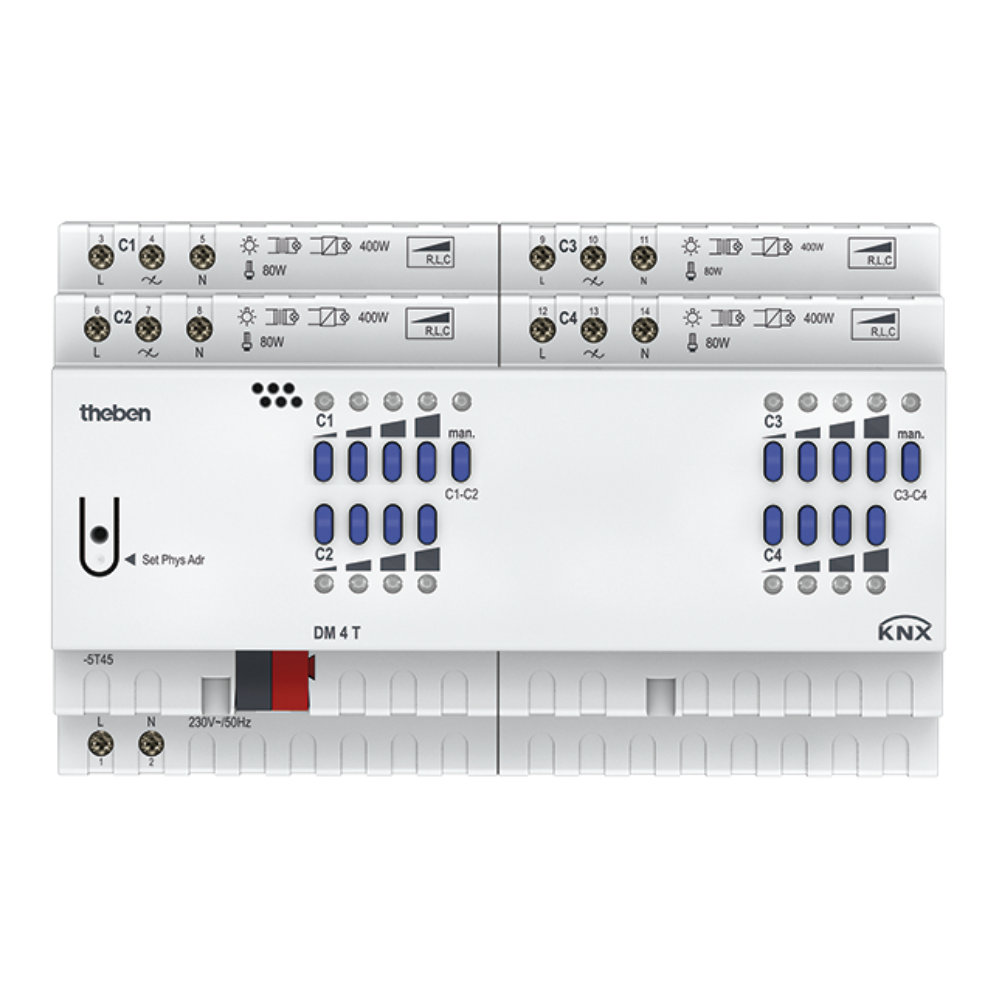

→ 4-way universal dimmer actuator FIX2
 → For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
 → Also suitable for dimming of dimmable energy-saving lamps
 → Also suitable for controlling fans
 → LED switching status display for each channel
 → Manual operation on device (even without bus connection)

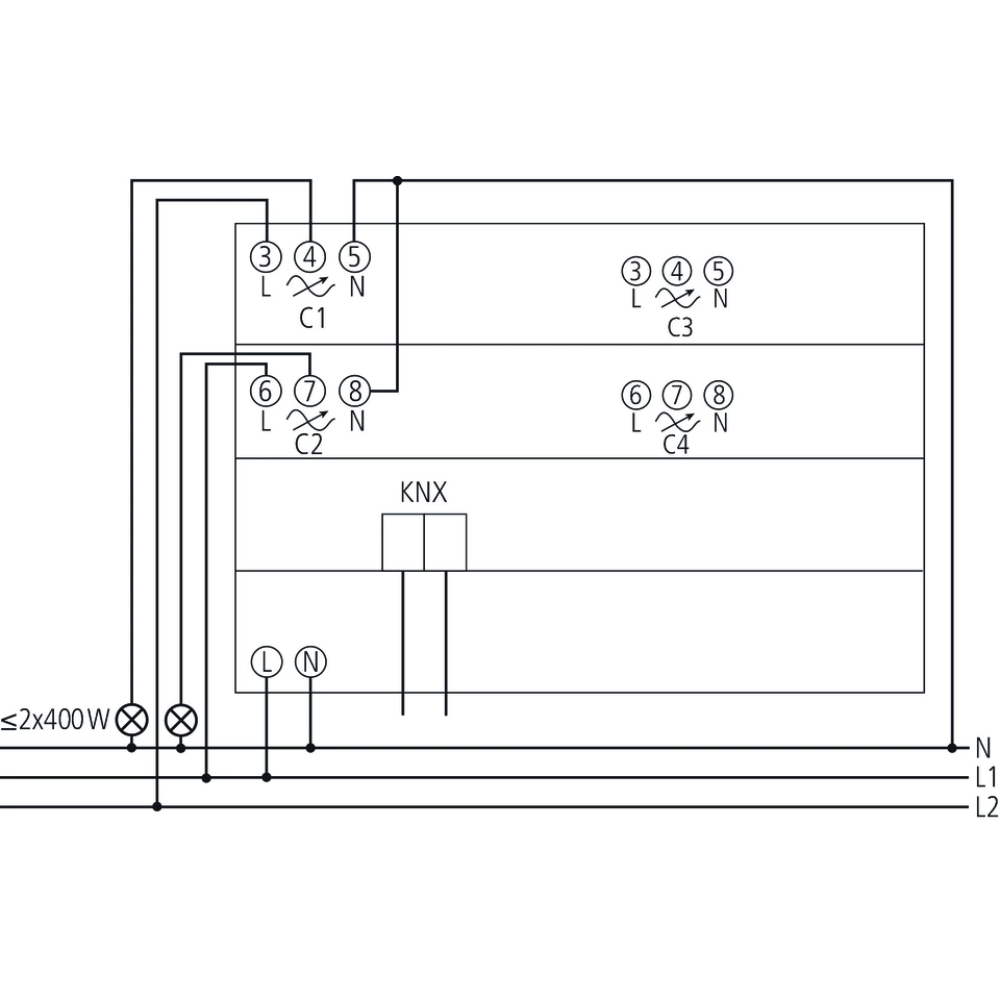

 → Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation

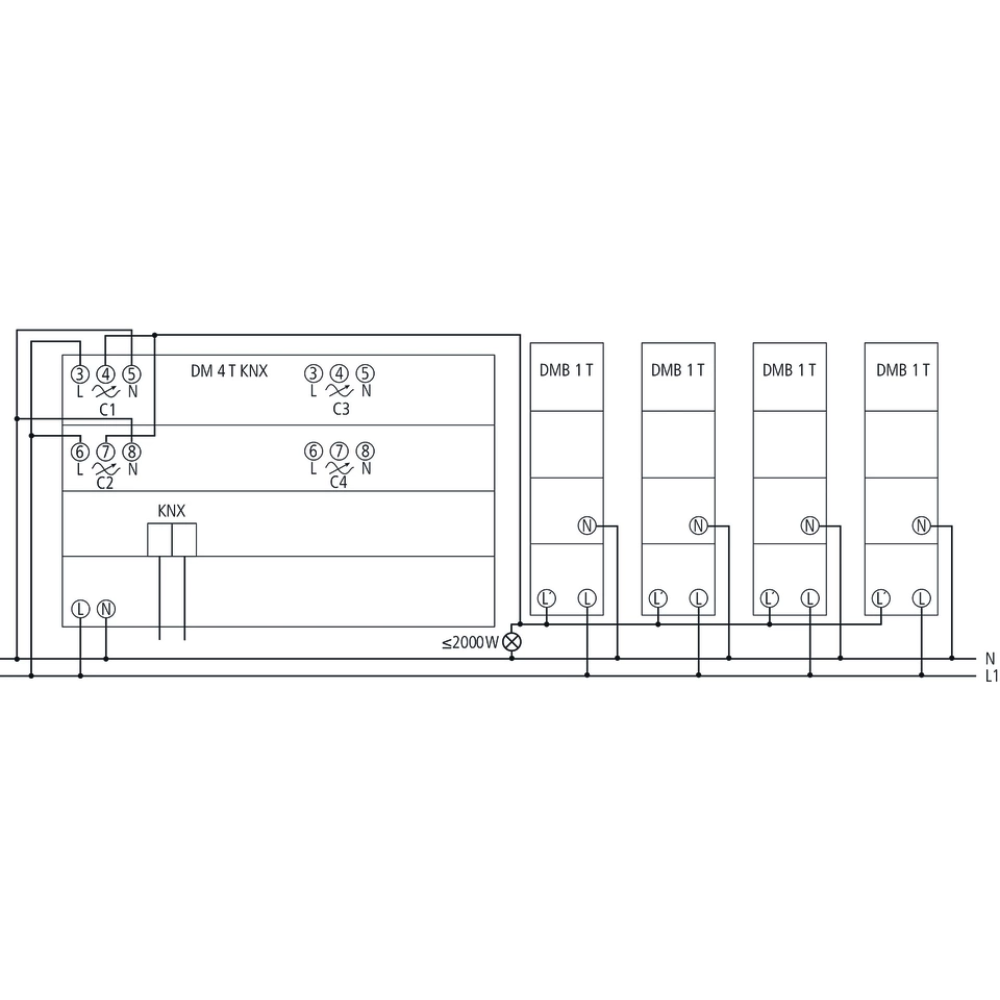

 → The dimming output can be upgraded by using additional dimmboosters "DMB 1 T KNX" - dimming output 300 W/VA for each dimmbooster. Output to a maximum of 2000 W/VA by using max. 4 boosters possible
 → Automatic load detection (can be deactivated)
 → For R, L and C loads
