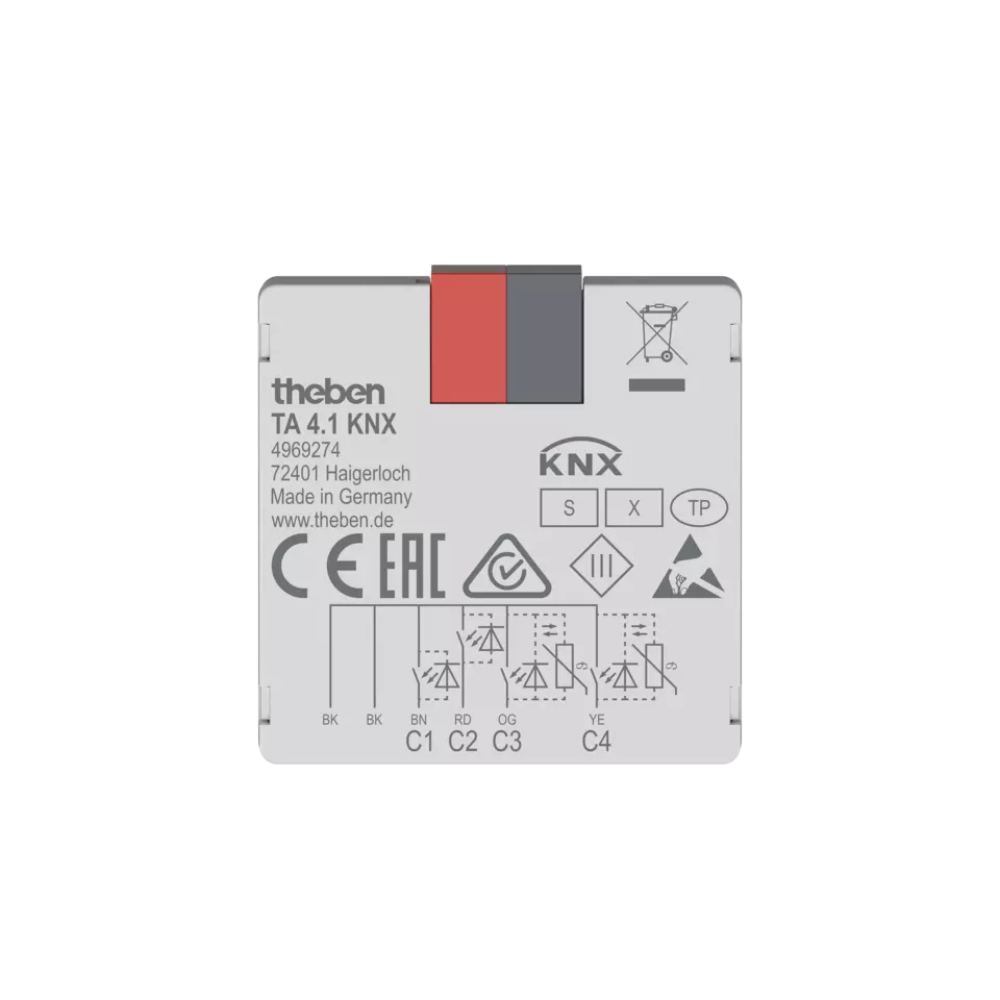

TA 4.1 KNX

شرح

Function description

• 4-way binary input push-button interface KNX TP
• 2 NTC inputs for detection of the actual temperature from -5 °C to +100 °C
• Secure commissioning and communication through support of KNX Data Secure
• Identification of the wire pairs via color coding
• Connectable cable length up to 30 m
• Can be installed in flush-mounted sockets with conventional sensors/switches
• Flexible LED controlling, thanks to increased output current of 3 mA commercially available LEDs and low curent LEDs can be controlled
• Inputs can be reconfigured to outputs with parameterizable flashing and pulsing function
• Colour coding of wiring pairs
