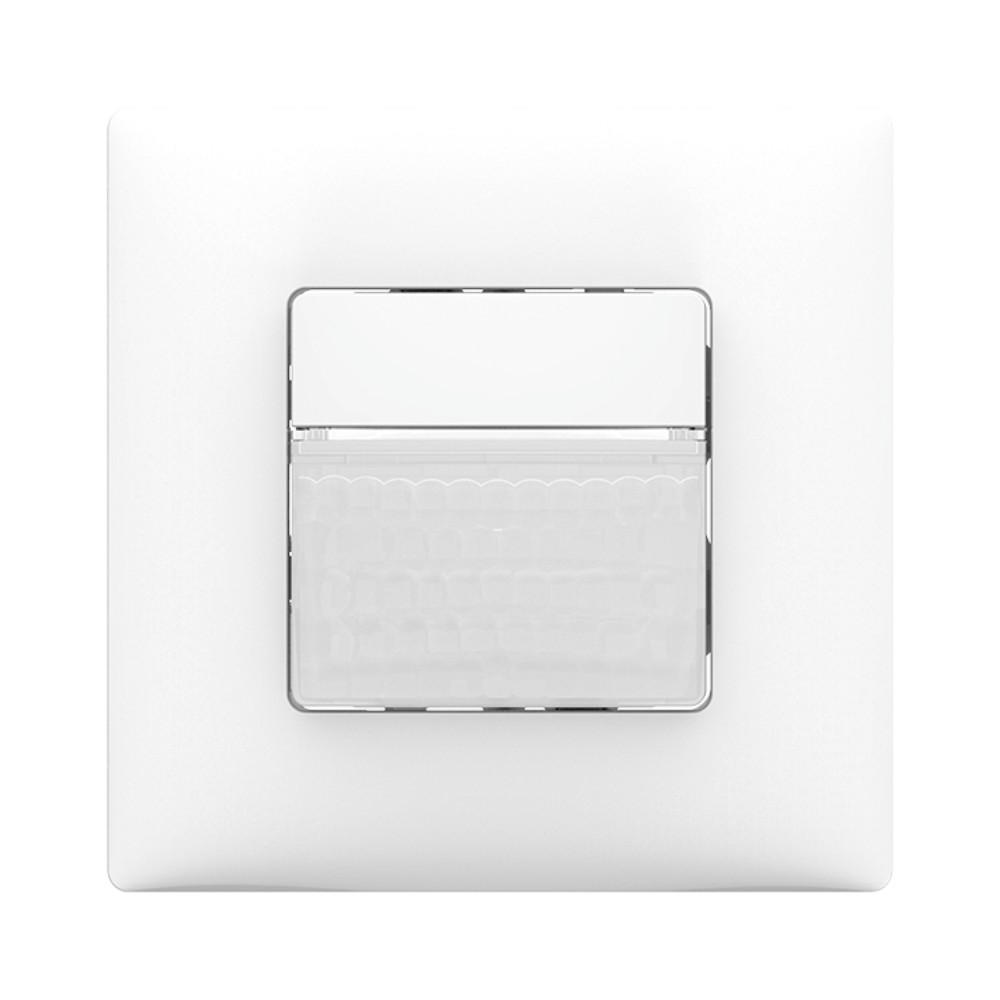

theMura S180 KNX UP WH

شرح

Function description

• Passive infrared motion detector for wall mounting flush-mounted
• Rectangular detection area 170°, 14 x 17 m (238 m²) at 1.2 m mounting height
• For KNX bus system
• 1 channel light and 1 channel presence for HVAC control
• 3 logic channels (AND, OR, XOR)
• KNX Data-Secure
• Operation as fully or semi-automatic possible
• Integrated, freely parameterisable push-button (can be deactivated)
• Manual override via external KNX push-button possible
• One directional brightness measurement (mixed light measurement)
