612
612

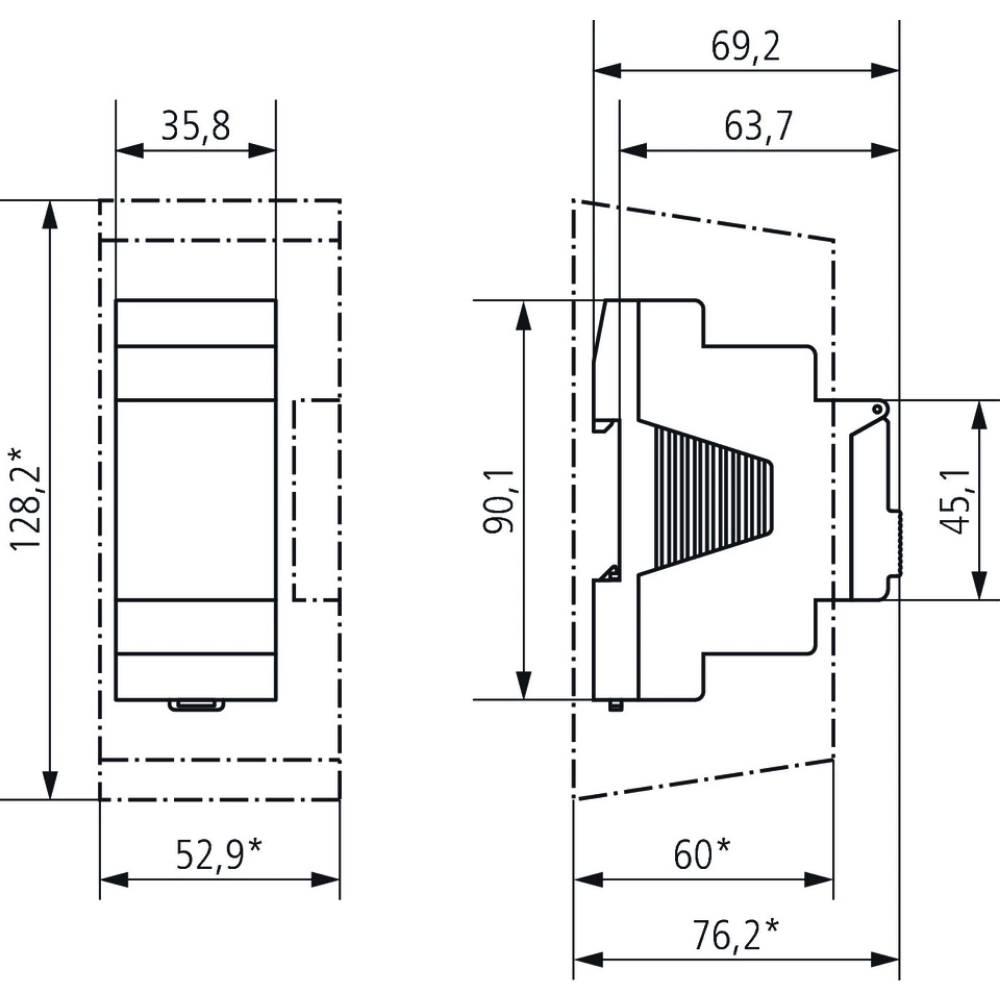

o572v17_M_2_TE_nnSD2

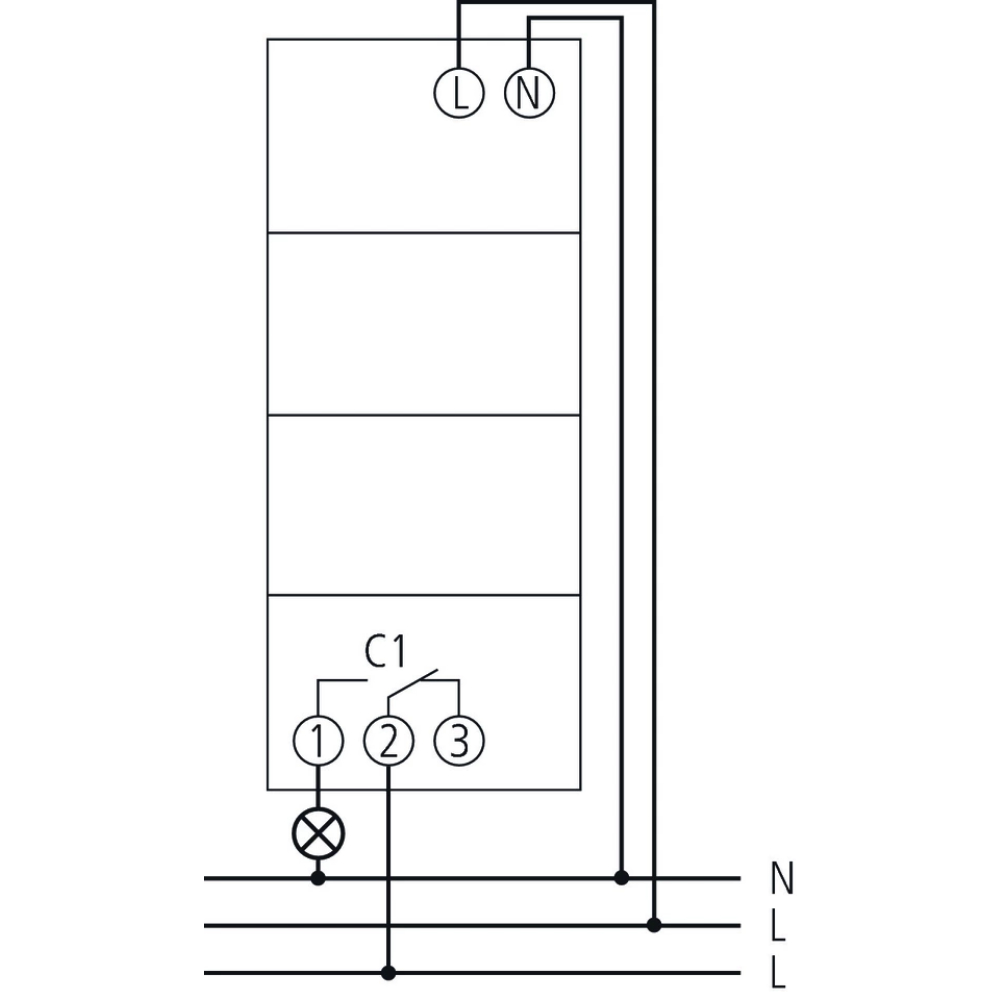

o215v20_A_TR_610_nnCE4

TR 612 top3

کد کالا:6120130
تایمر دیجیتال هفتگی دو کانال
مدل نصب : ریلی
منبع تغذیه : 230 VAC
COSφ=1 → 16A
COSφ=0.6 → 10A
ظرفیت حافظه : تعداد 56برنامه
قابل تنظیم برای هر1 دقیقه
درجه حفاظت : IP 20

شرح

Function description

  • Digital time switch with weekly program
  • 2 channels
  • Programming by app possible
  • Safe transfer via optional Bluetooth Low Energy OBELISK top3
  • Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
  • 100 % compatible with top2
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing plug-in connection
  • Text-oriented user guidance in display
  • Preset date and time
  • fully operable without mains connection
  • 56 memory locations
  • Interface for OBELISK top2 memory card (PC programming)
  • 2. insertable switching program
  • Copying programs
  • Storing programs
  • 10 year power reserve (lithium battery)
  • Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
  • ON-OFF switching times
  • Switching preselection
  • Permanent switching ON/OFF
  • Integrated operating hour counter
  • Reset option
  • Service function for monitoring maintenance intervals
  • Holiday program
  • Display back light (can be turned off)
  • Permanent switching ON/OFF
  • PIN coding
  • Automatic summer/winter time changeover
  • can be deactivated
  • Date rule options are already stored for Europe, the USA and other countries
  • own date rule options or changeover around set dates are available
